MS5 Series Specs

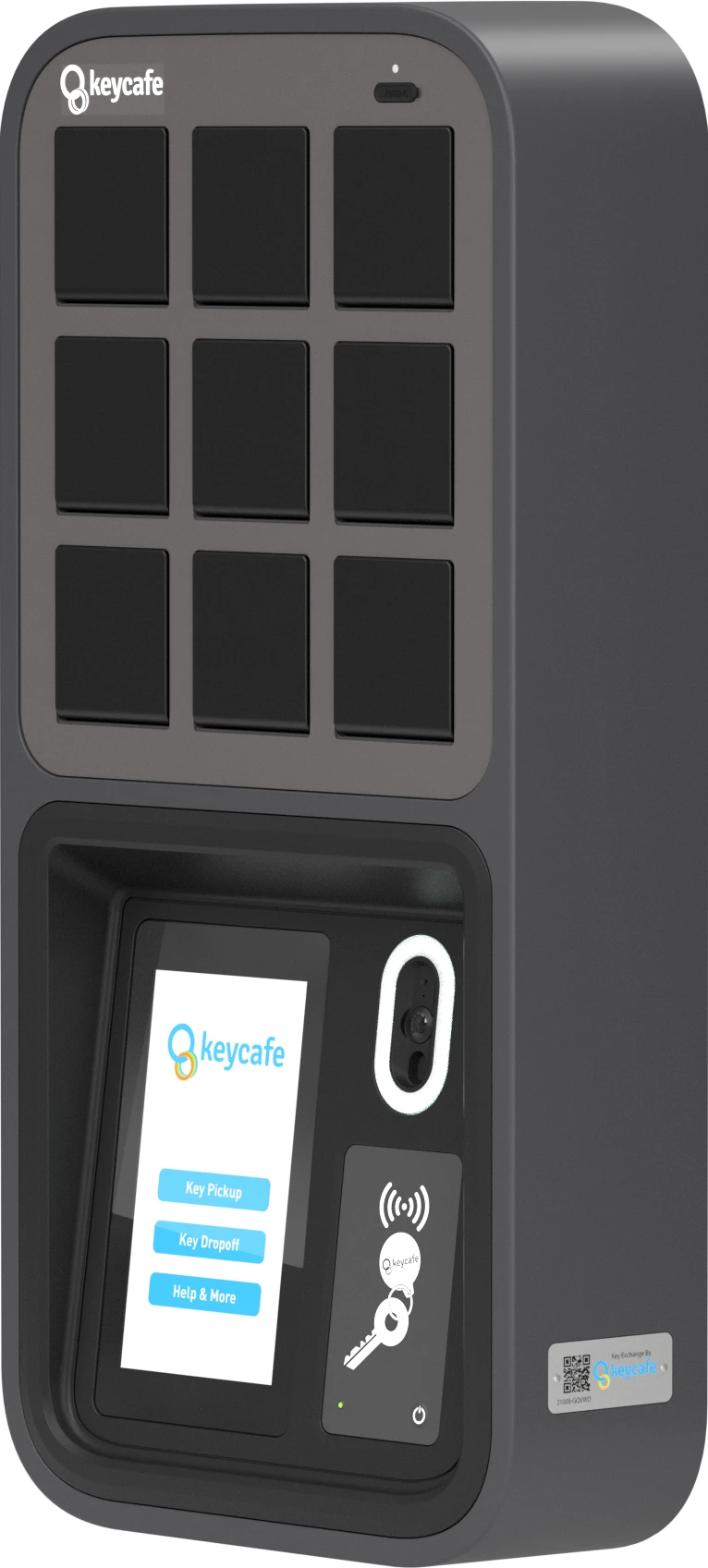

    MS5 Base Station

    Introducing the MS5 SmartBox, your reliable partner for business key management! This IoT key locker system streamlines control over your organization's keys, permitting authorized access only. With real-time connectivity and a cloud-based app, you and your team can remotely manage keys anytime, anywhere - keeping your operations running seamlessly 24/7.

    Download PDF

    Features

    • Cloud-based user access management
    • Expandable up to 429 keys
    • Multi-language support
    • Multiple user authentication options: PIN codes, badge scan, QR code, mobile app
    • Enhanced security with optional 2FA key pickups
    • Battery backup
    • Offline functionality and redundant failsafe key access system
    • IP52 / Weather-resistant

    MS5 Base Station Specifications

    Physical Specifications

    Dimensions
    11.4" W x 23.3" H x 4" D (29cm W x 59cm H x 10cm D)
    Weight
    15.3 lbs (6.9 kg)
    Mounting
    Wall mount with steel backplate into studs. Secured to the backplate with an electronic lock. Drywall install kit included.
    Material
    Precision molded polycarbonate chassis with steel wall reinforcements, diecast metal doors, and 16 gauge dual steel plate mounting and masterlock structure.
    Ingress Protection
    IP52 / Weather-resistant (IP56 with Outdoor Enclosure)
    Color
    Graphite with obsidian accents
    Key Bins
    9
    Bin Inside Dimensions
    2.25" W x 1.75" H x 3.5" D (5.7cm W x 4.5cm H x 9cm D)
    Operating Environment
    Suitable for indoor use at -5°C to +60°C and may be installed outdoors if protected from direct elements, dust, and moisture using the Keycafe Outdoor Enclosure. Usage to -20°C when installed in a Keycafe Outdoor Enclosure with Heater Module added, which is recommended for use in locations where the temperature drops below -5°C for 24 hours more than 5 days per year. Warranty is void if installed outdoor without the Keycafe Outdoor Enclosure.

    Communications

    WiFi
    2.4 and 5.0 GHz IEEE 802.11 b/g/n/ac
    Ethernet
    Gigabit PHY supporting IEEE 1588.
    Cellular
    Optional kit available (available in 200+ countries on 470+ carriers).

    Compute Module

    Memory
    4GB RAM, 8GB eMMC storage

    Interface

    Display
    7" 800x480 px multi-touch capacitive display
    NFC Scanner
    13.56 MHz RFID/NFC reader
    Motion Sensor
    Optical Sensor up to 157" (4m)
    LED Ring
    RGBW
    Camera
    5MP sensor capable of 1080p resolution, fisheye lens for 160 degree angle of view
    Microphone
    100 Hz ~ 10 kHz Analog MEMS Microphone (Silicon), -42dB ±3dB @ 94dB SPL
    Speaker
    680 Hz ~ 20 kHz, 8 Ohms
    Key Tracking
    32mm NFC fobs, optional fobless workflow

    Battery and Power

    Power
    Input: 4 ft (122 cm) USB-C 5V DC 3.15A max. Idle current draw: 1A
    Backup Power
    3500 mAh Li-ion battery backup system. Failsafe module with independent power supply.
    Power Consumption
    1A@5V (5W)

    Compliance

    Certifications
    CSA, FCC, CE, RoHS

    In the Box

    MS5 SmartBox
    USB-C Power supply
    10 NFC fobs
    Backplate mounting kit for drywall

    Hardware Diagrams

    MS5 Base Station - View 1

    Hardware Features

    1. 1Chassis
    2. 2Key Bins
    3. 3Touch Screen
    4. 4Camera
    5. 5LED Ring
    6. 6NFC Scanner
    7. 7Reset Button
    8. 8LED Status Indicator
    9. 9Failsafe Sensor

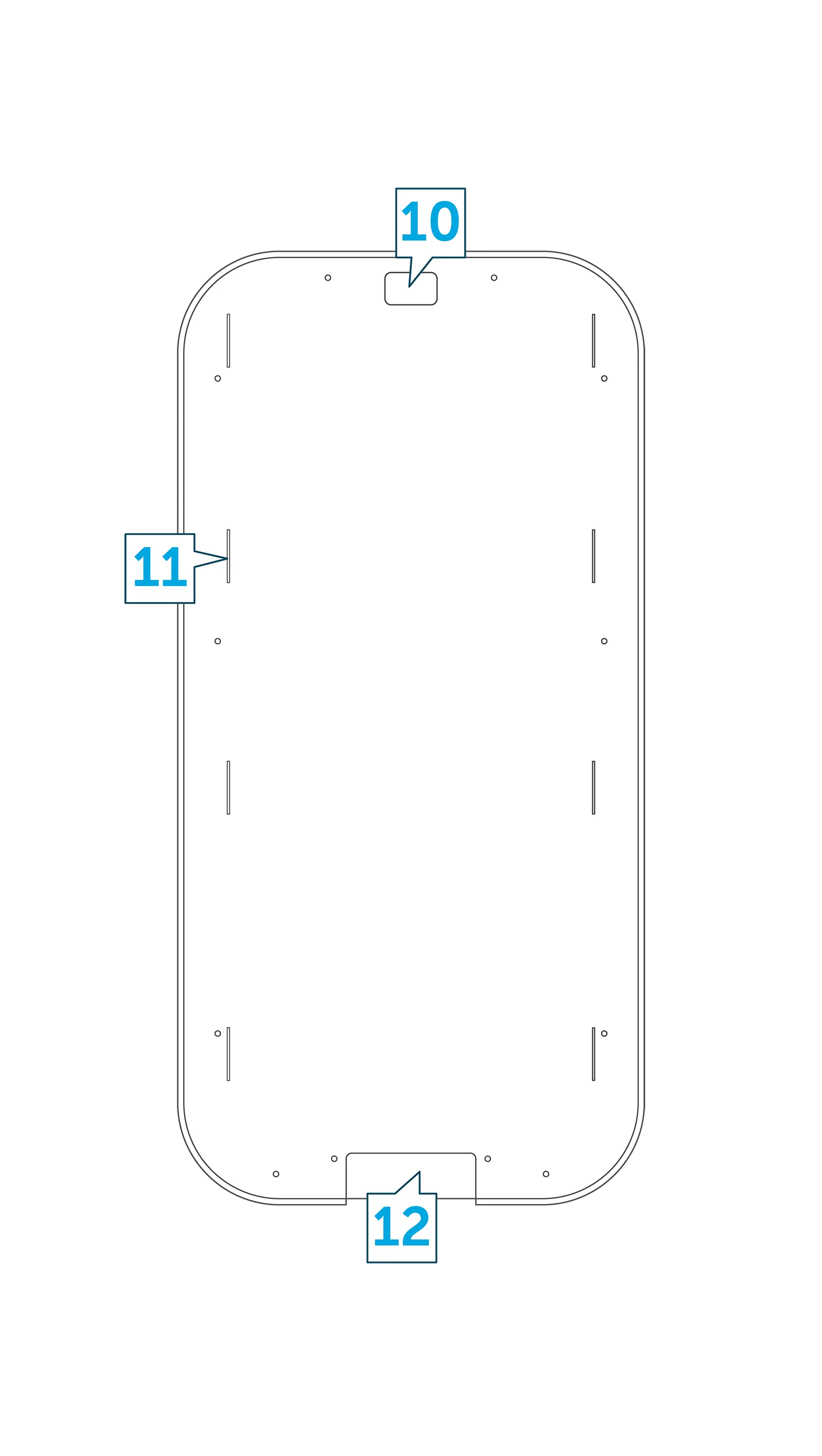

    10. 10Electronic Lock
    11. 11Backplate Mounting Slot
    12. 12Electrical Ports
