Introducing the MS5 SmartBox, your reliable partner for business key management! This IoT key locker system streamlines control over your organization's keys, permitting authorized access only. With real-time connectivity and a cloud-based app, you and your team can remotely manage keys anytime, anywhere - keeping your operations running seamlessly 24/7.
Introducing the MS5 SmartBox, your reliable partner for business key management! This IoT key locker system streamlines control over your organization's keys, permitting authorized access only. With real-time connectivity and a cloud-based app, you and your team can remotely manage keys anytime, anywhere - keeping your operations running seamlessly 24/7.
Introducing the MS5 SmartBox, your reliable partner for business key management! This IoT key locker system streamlines control over your organization's keys, permitting authorized access only. With real-time connectivity and a cloud-based app, you and your team can remotely manage keys anytime, anywhere - keeping your operations running seamlessly 24/7.

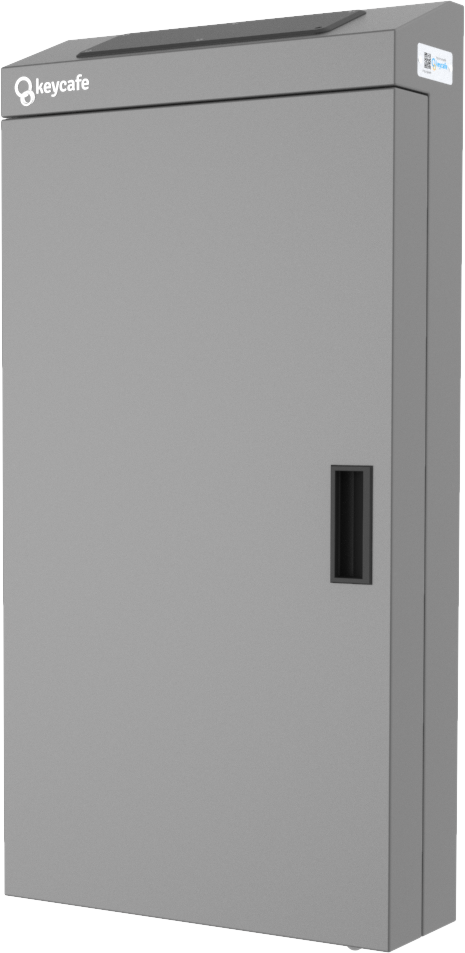

A 16 gauge steel enclosure for a single MS5 or MS5E-18 to protect the SmartBox from adverse weather in outdoor installations. The enclosure features a magnetic closure and a loop for an optional padlock.

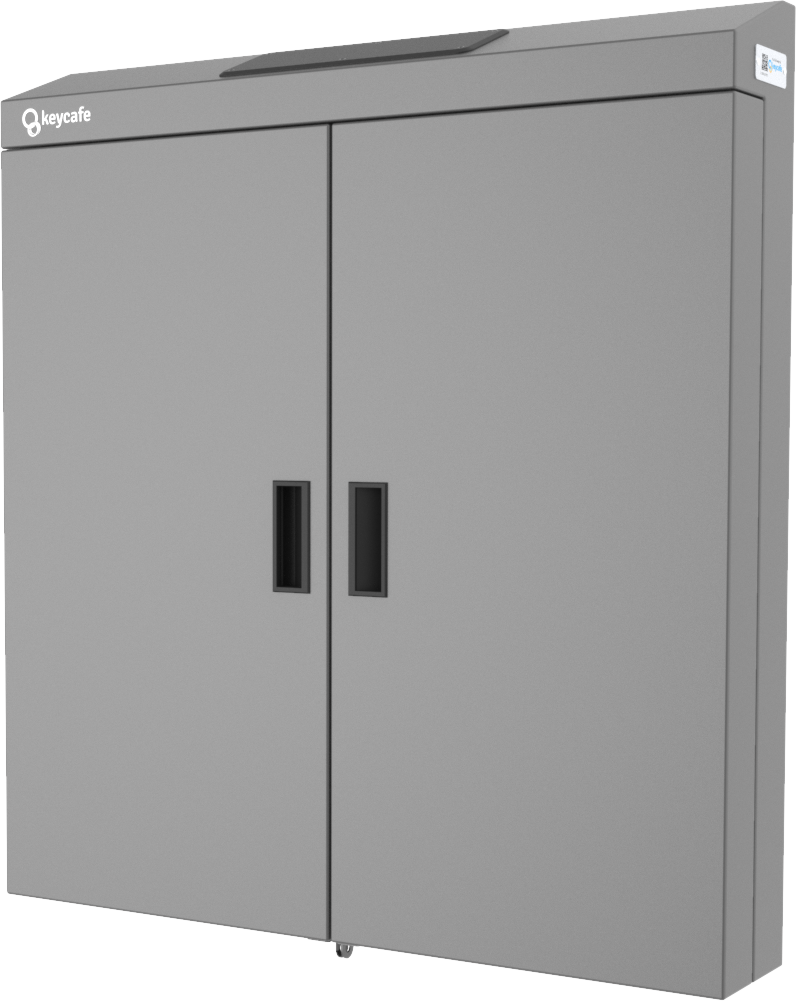

A 16 gauge steel enclosure for an MS5 and MS5E-18, two MS5E-18, or one MS5E-42 to protect the SmartBoxes from adverse weather in outdoor installations. The enclosure features a magnetic closure and a loop for an optional padlock.

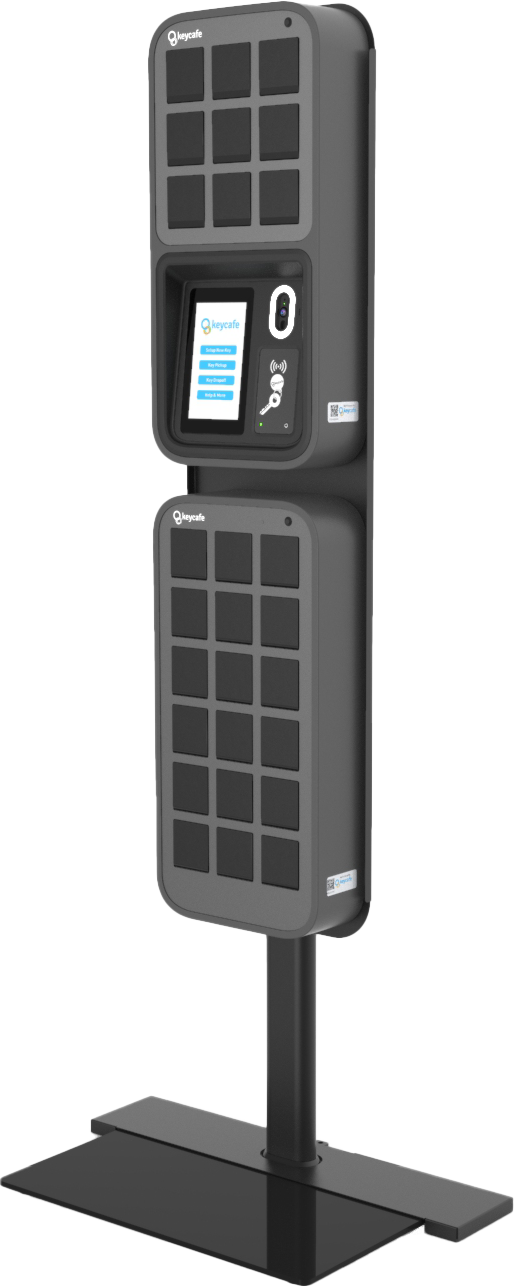

A stand constructed with a tempered glass base, alloy steel pillar, and steel backplate mount for a maximum of two SmartBoxes. Allows for SmartBox installations where wall mounting is not possible.
Features
- Cloud-based user access management
- Expandable up to 429 keys
- Multi-language support
- Users have options for PIN codes or app-based key exchanges
- Enhanced security with optional 2FA key pickups
- Battery backup
- Offline codes for connectivity backup
- IP52 / Weather-resistant
- Cloud-based user access management
- Expandable up to 429 keys
- Multi-language support
- Users have options for PIN codes or app-based key exchanges
- Enhanced security with optional 2FA key pickups
- Battery backup
- Offline codes for connectivity backup
- IP52 / Weather-resistant
- Cloud-based user access management
- Expandable up to 429 keys
- Multi-language support
- Users have options for PIN codes or app-based key exchanges
- Enhanced security with optional 2FA key pickups
- Battery backup
- Offline codes for connectivity backup
- IP52 / Weather-resistant
- Custom-built for MS5 Series SmartBoxes
- Weather-resistant stainless steel
- Roof overhang to prevent water dripping in
- Rear and bottom openings for cable pass-through
- Custom-built for MS5 Series SmartBoxes
- Weather-resistant stainless steel
- Roof overhang to prevent water dripping in
- Rear and bottom openings for cable pass-through
- Custom-built for MS5 Series SmartBoxes
- Integrated cable management
- Optional steel floor bracket to secure the stand with bolts
- Compatible with MS5 and MS5E-18 only
MS5 Base Station Specifications
Physical Specifications
- Dimensions
- 11.4” W x 23.3” H x 4” D (29cm W x 59cm H x 10cm D)
- Weight
- 15.3 lbs (6.9 kg)
- Mounting
- Wall mount with steel backplate into studs. Secured to the backplate with an electronic lock. Drywall install kit included.
- Material
- Precision molded polycarbonate chassis with steel wall reinforcements, diecast metal doors, and 16 gauge dual steel plate mounting and masterlock structure.
- Ingress Protection
-
IP52 / Weather-resistant
IP56 with Outdoor Enclosure - Colour
- Graphite with obsidian accents
- Key Bins Available
- 9
- Bin Inside Dimensions
- 2.25” W x 1.75” H x 3.5” D (5.7cm W x 4.5cm H x 9cm D)
- Operating Environment
- -20° to +60°C at 95% non-condensing relative humidity when connected to AC power. Suitable for indoor use and may be installed outdoors if protected from direct elements using the Outdoor Enclosure. The SmartBox is weather-resistant but must not be placed in the open exposed to direct rain or snow.
Communications
- Connectivity
-
WiFi: 2.4 and 5.0 GHz IEEE 802.11 b/g/n/ac.
Ethernet: Gigabit PHY supporting IEEE 1588.
Cellular: Optional kit available (available in 200+ countries on 470+ carriers).
Compute Module
- Memory
- 4GB RAM, 8GB eMMC storage
Interface
- Display
- 7" 800x480 px multi-touch capacitive display
- NFC Scanner
- 13.56 MHz RFID/NFC reader
- Motion Sensor
- Optical Sensor up to 157" (4m)
- LED Ring
- RGBW
- Camera
- 5MP sensor capable of 1080p resolution, fisheye lens for 160 degree angle of view
- Microphone
- 100 Hz ~ 10 kHz Analog MEMS Microphone (Silicon), -42dB ±3dB @ 94dB SPL
- Speaker
- 680 Hz ~ 20 kHz, 8 Ohms
- Key Tracking
- 32mm NFC fobs, optional fobless workflow
Battery and Power
- Power
- Input: 4 ft (122 cm) USB-C 5V DC 3.15A max. Idle current draw: 1A
- Backup Power
- 3500 mAh Li-ion battery backup system. Failsafe module with independent power supply.
- Power Consumption
- 1A@5V (5W)
Compliance
- Certifications
- CSA, FCC, CE, RoHS, and Giteki
In the Box
-
• MS5 SmartBox
• USB-C Power supply
• 10 NFC fobs
• Backplate mounting kit for drywall

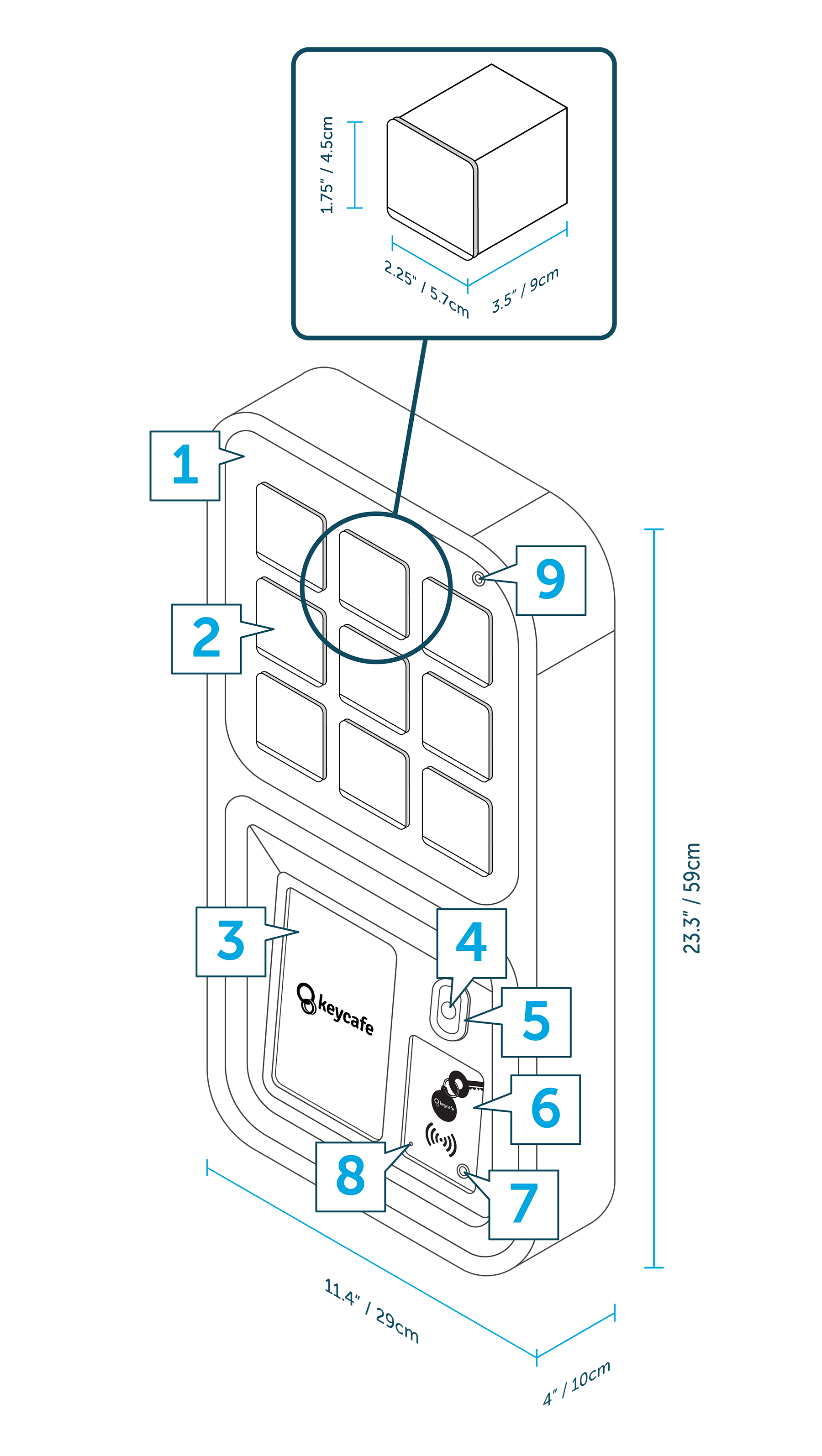

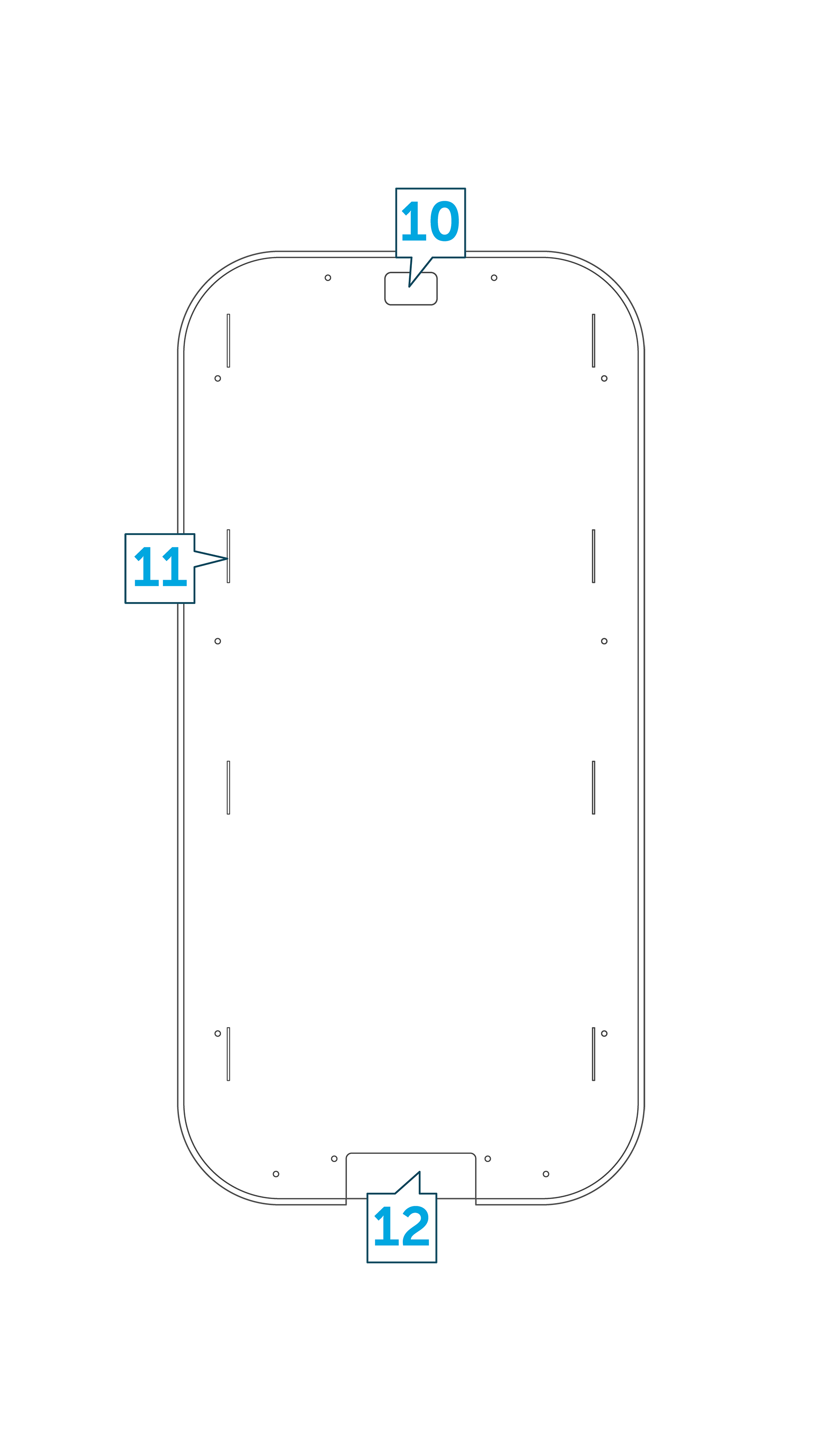

MS5 Base Station Hardware
![MS5 Base Station](/static/wpcjsG4gX5qNNHETTZ6ts3sxyP0BhbPdEeZlCchCYcw.png)
![MS5 Base Station](/static/bTpUKV33AyEYiMHOfOovdnymPqh1YxSNefiYJrcV1sS.png)
![MS5 Base Station](/static/hVDmvYQmblzfu4l1kbFqaU1lLRUTuyUJvdfZLEORD6W.png)
- Chassis
- Key Bins
- Touch Screen
- Camera
- LED Ring
- NFC Scanner
- Reset Button
- LED Status Indicator
- Failsafe Sensor
- Electronic Lock
- Backplate Mounting Slot
- Electrical Ports

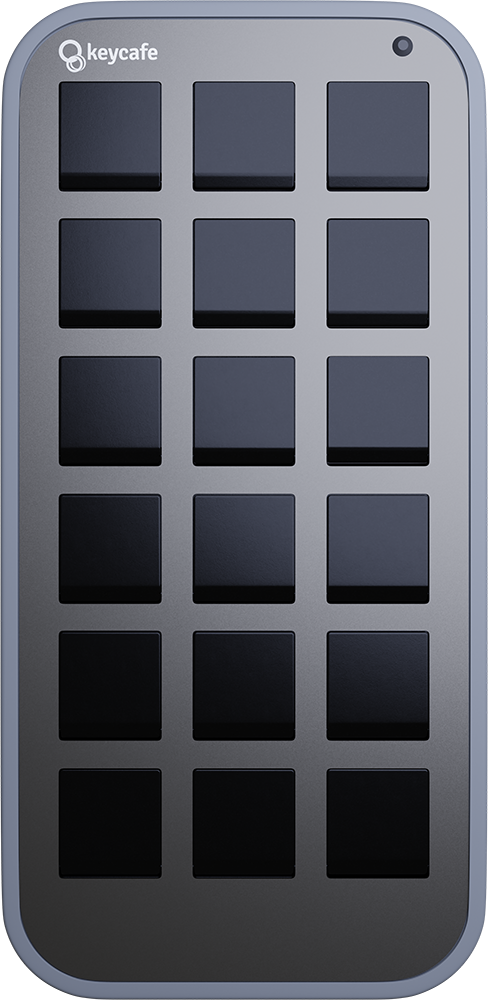

MS5E-18 Expansion Unit Specifications
Physical Specifications
- Dimensions
- 11.4” W x 23.3” H x 4” D (29cm W x 59cm H x 10cm D)
- Weight
- 15.3 lbs (6.9 kg)
- Mounting
- Wall mount with steel backplate into studs. Secured to the backplate with an electronic lock. Drywall install kit included.
- Material
- Precision molded polycarbonate chassis with steel wall reinforcements, diecast metal doors, and 16 gauge dual steel plate mounting and masterlock structure.
- Ingress Protection
-
IP52 / Weather-resistant
IP56 with Outdoor Enclosure - Colour
- Graphite with obsidian accents
- Key Bins Available
- 18
- Bin Inside Dimensions
- 2.25” W x 1.75” H x 3.5” D (5.7cm W x 4.5cm H x 9cm D)
- Operating Environment
- -20° to +60°C at 95% non-condensing relative humidity when connected to AC power. Suitable for indoor use and may be installed outdoors if protected from direct elements using the Outdoor Enclosure. The SmartBox is weather-resistant but must not be placed in the open exposed to direct rain or snow.
Power
- Power
- PoE (Power over Ethernet). 2 ft (61 cm) Cat6 Ethernet Cable.
- Power Consumption
- 1A@5V (5W)
Compliance
- Certifications
- CSA, FCC, CE, RoHS, and Giteki
In the Box
-
• MS5E-18 SmartBox
• Ethernet cable
• 20 NFC fobs
• Termination Dongle
• Backplate mounting kit for drywall

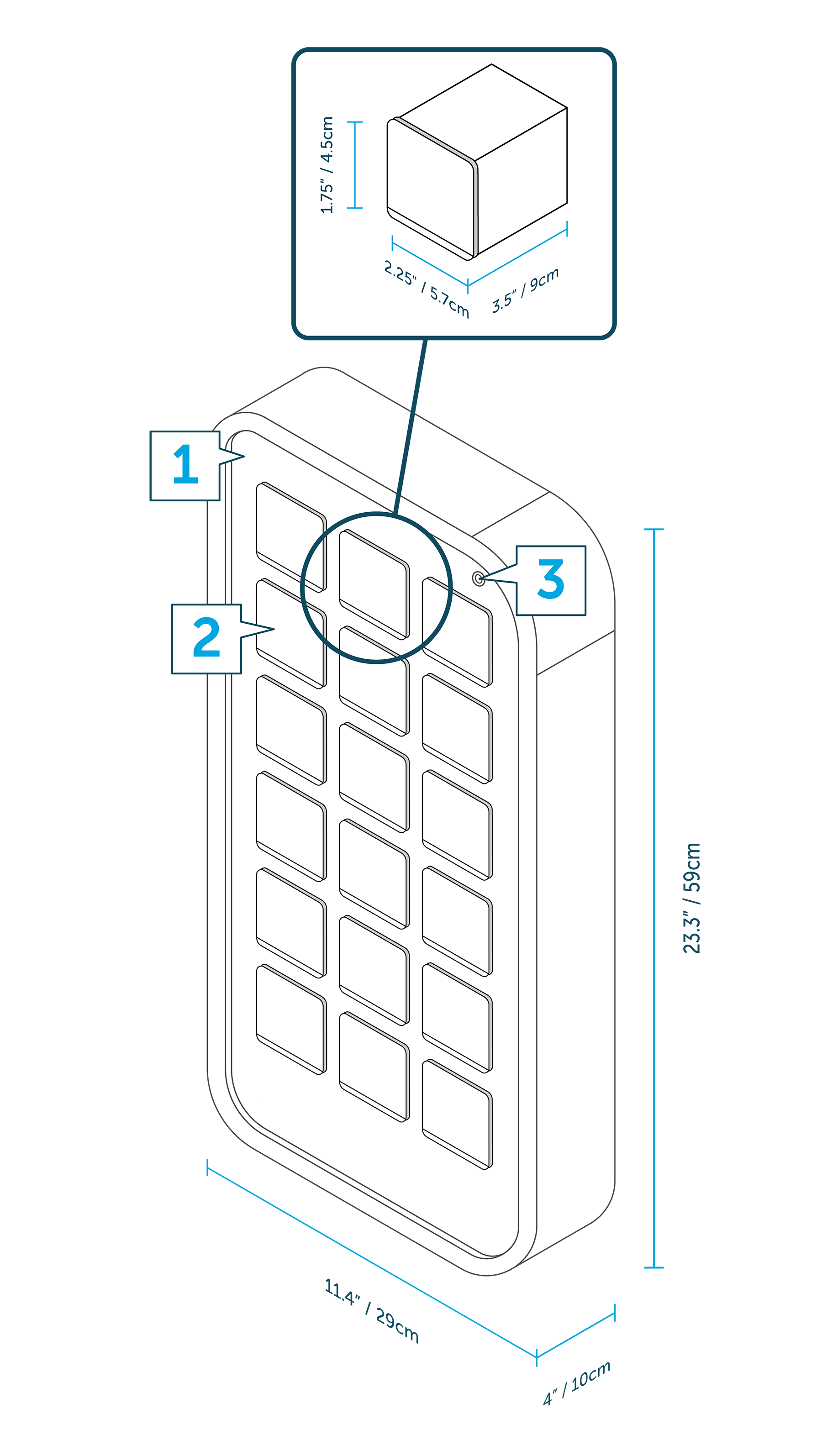

MS5E-18 Expansion Unit Hardware
![MS5E-18 Expansion Unit](/static/3Q71y5JfNXXMD0gZTgAF737BG05AIN1reEa4DH3LCYP.png)
![MS5E-18 Expansion Unit](/static/CMCGAVd1XD7DzNSUfT0ZbiBLMmmBQ1RJTyG5NKoMNjg.png)
![MS5E-18 Expansion Unit](/static/hVDmvYQmblzfu4l1kbFqaU1lLRUTuyUJvdfZLEORD6W.png)
- Chassis
- Key Bins
- Failsafe Sensor
- Electronic Lock
- Backplate Mounting Slot
- Electrical Ports

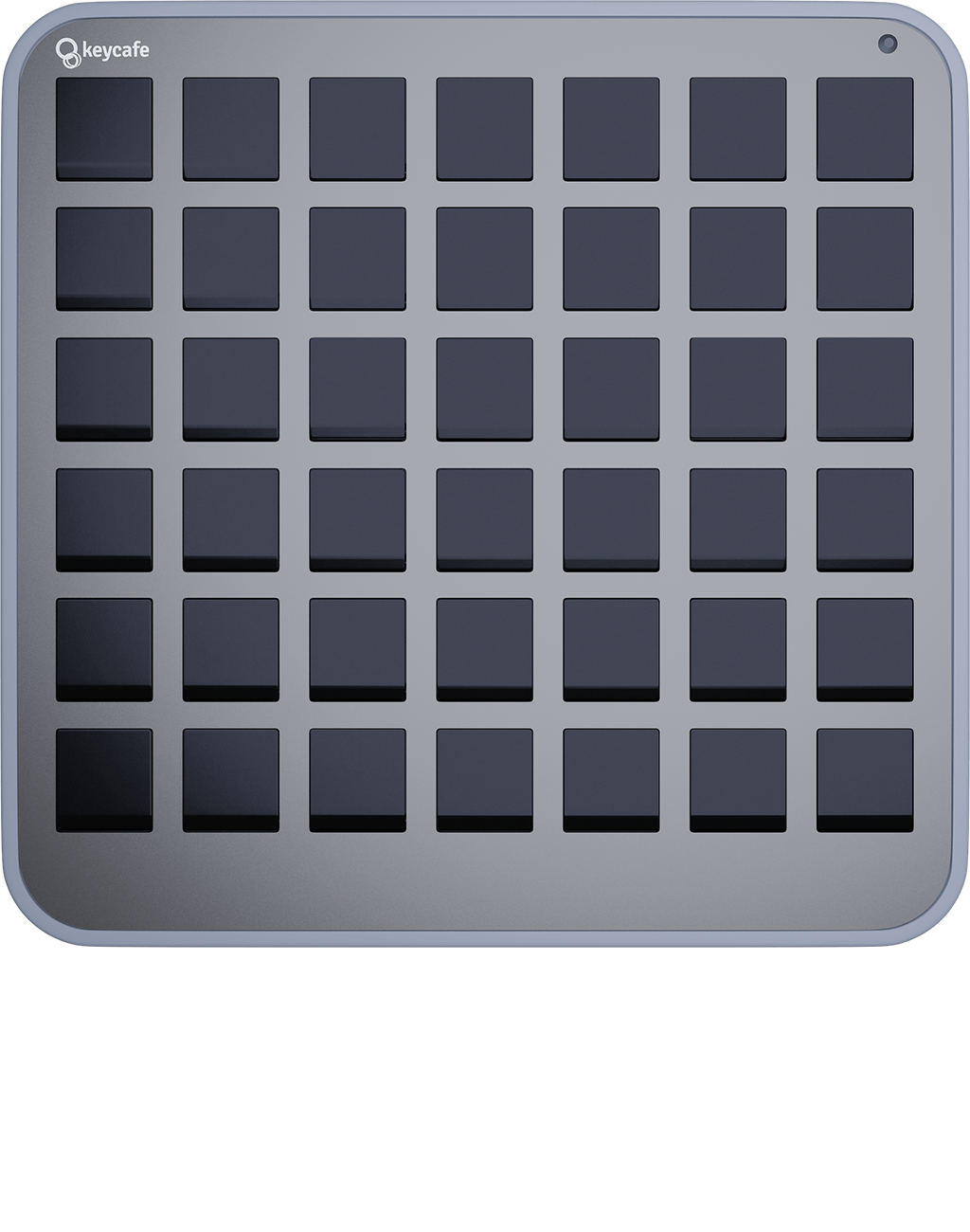

MS5E-42 Expansion Unit Specifications
Physical Specifications
- Dimensions
- 23.8” W x 23.3” H x 4” D (60.5cm W x 59cm H x 10cm D)
- Weight
- 32 lbs (14.5 kg)
- Mounting
- Wall mount with steel backplate into studs. Secured to the backplate with an electronic lock. Drywall install kit included.
- Material
- Precision molded polycarbonate chassis with steel wall reinforcements, diecast metal doors, and 16 gauge dual steel plate mounting and masterlock structure.
- Ingress Protection
-
IP52 / Weather-resistant
IP56 with Outdoor Enclosure - Colour
- Graphite with obsidian accents
- Key Bins Available
- 42
- Bin Inside Dimensions
- 2.25” W x 1.75” H x 3.5” D (5.7cm W x 4.5cm H x 9cm D)
- Operating Environment
- -20° to +60°C at 95% non-condensing relative humidity when connected to AC power. Suitable for indoor use and may be installed outdoors if protected from direct elements using the Outdoor Enclosure. The SmartBox is weather-resistant but must not be placed in the open exposed to direct rain or snow.
Power
- Power
- PoE (Power over Ethernet). 3 ft (91 cm) Cat6 Ethernet Cable.
- Power Consumption
- 1A@5V (5W)
Compliance
- Certifications
- FCC, CE, RoHS, and Giteki
In the Box
-
• MS5E-42 SmartBox
• Ethernet cable
• 50 NFC fobs
• Termination Dongle
• Backplate mounting kit for drywall

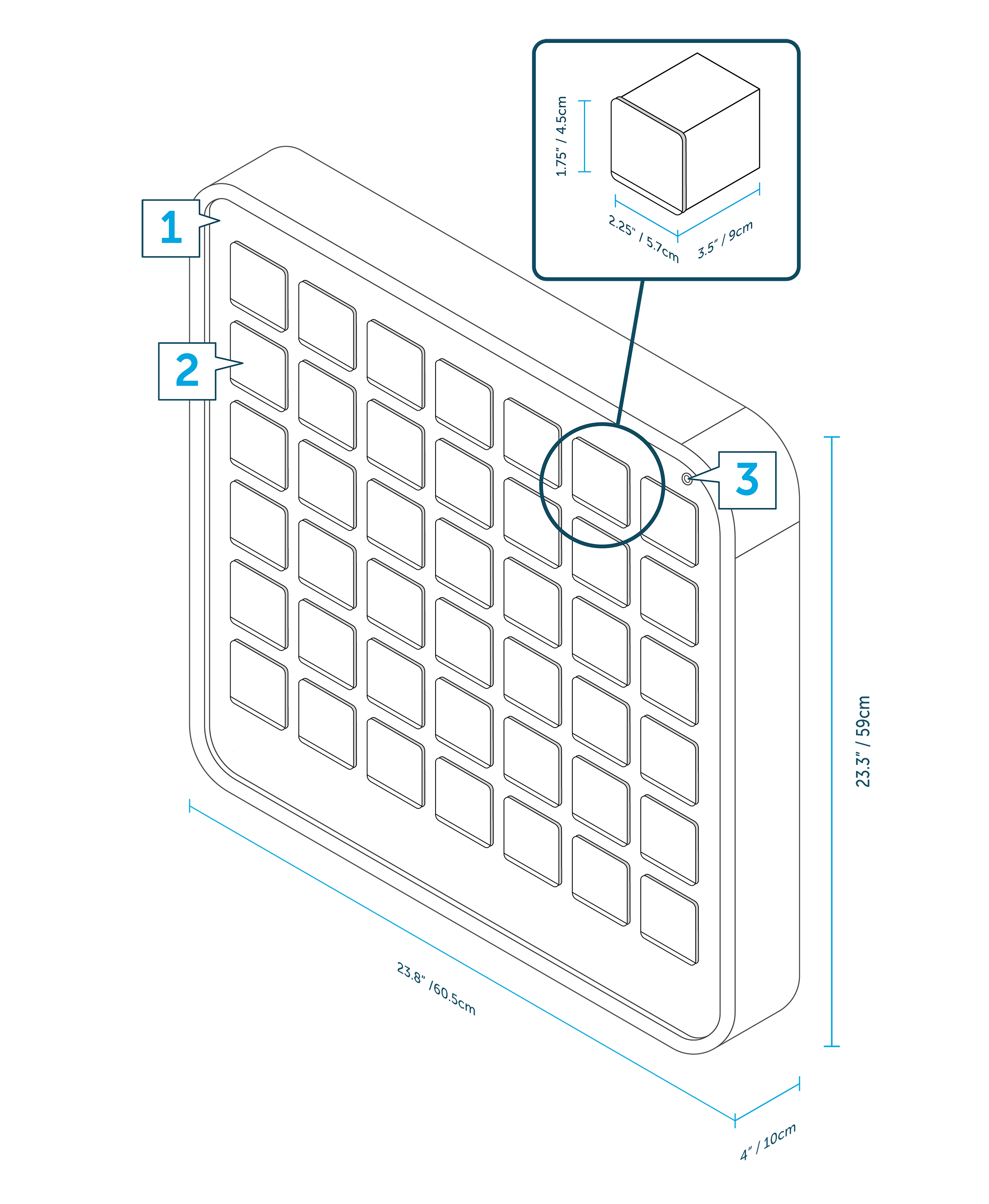

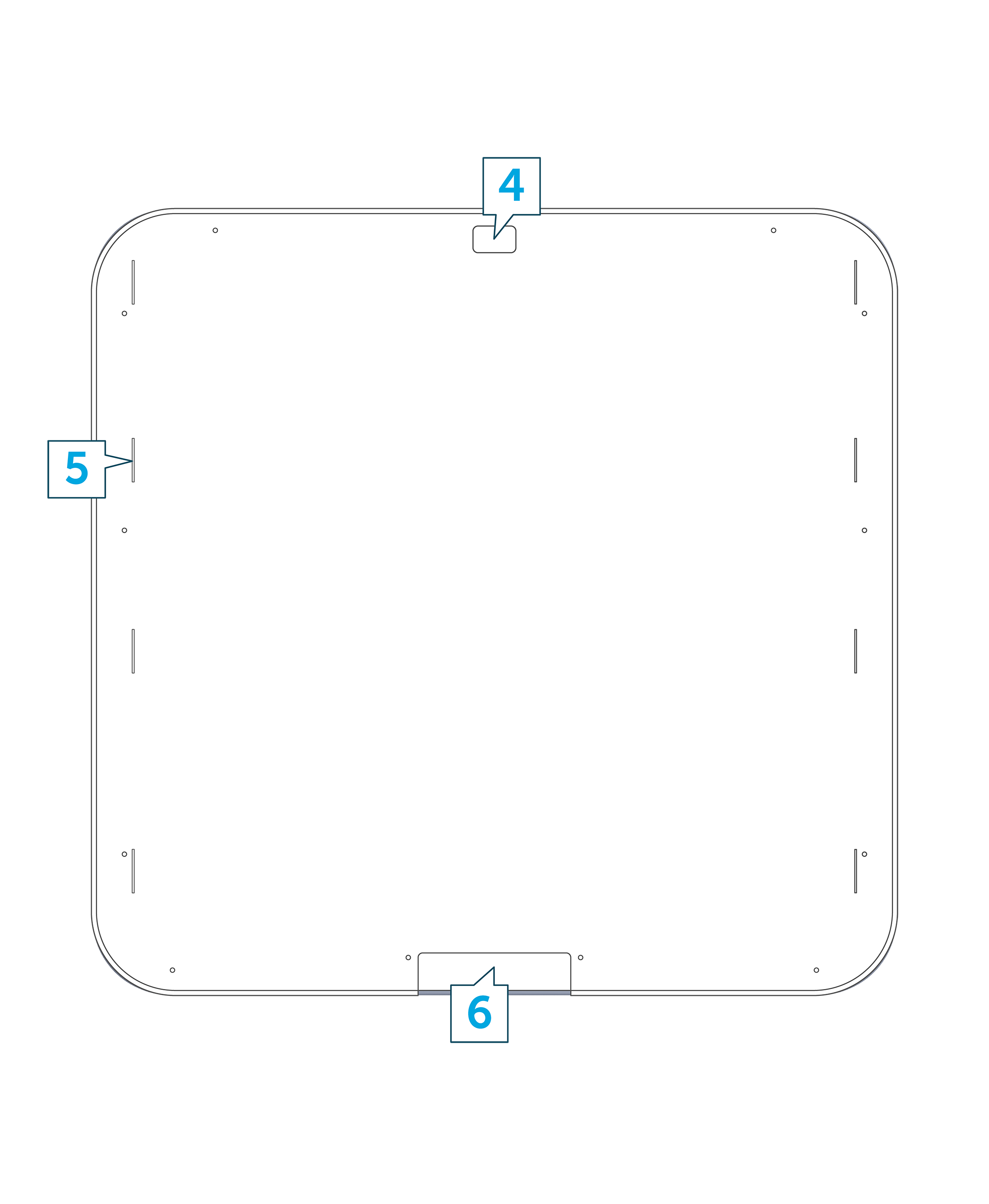

MS5E-42 Expansion Unit Hardware
![MS5E-42 Expansion Unit](/static/HBgwVXOxxqkUxHeq3O73Cfp7nlQcRUqKqyh1rEqAHIM.png)
![MS5E-42 Expansion Unit](/static/HH4Wb0TUHhBQdp3aw5ZFzSjbp24NCqVcp8yNMn6R6o8.png)
![MS5E-42 Expansion Unit](/static/dJp4wrpoyZAQ5H4TM5xi4qZZ5hGl8YUZzaohvW8R5dI.png)
- Chassis
- Key Bins
- Failsafe Sensor
- Electronic Lock
- Backplate Mounting Slot
- Electrical Ports
Specifications
- Dimensions
- 14.6" W x 29" H x 4" D (37cm W x 74.8cm H x 10cm D)
- Weight
- 13 lbs (5.9 kg)
- Ingress Protection
- IP56
- Mounting
- Wall mount
- Colour
- Gunmetal grey powder coating
- Warranty
- Two (2) year manufacturer warranty to repair or replace any manufacturer defects
- Support
- 24/7 email and chat support

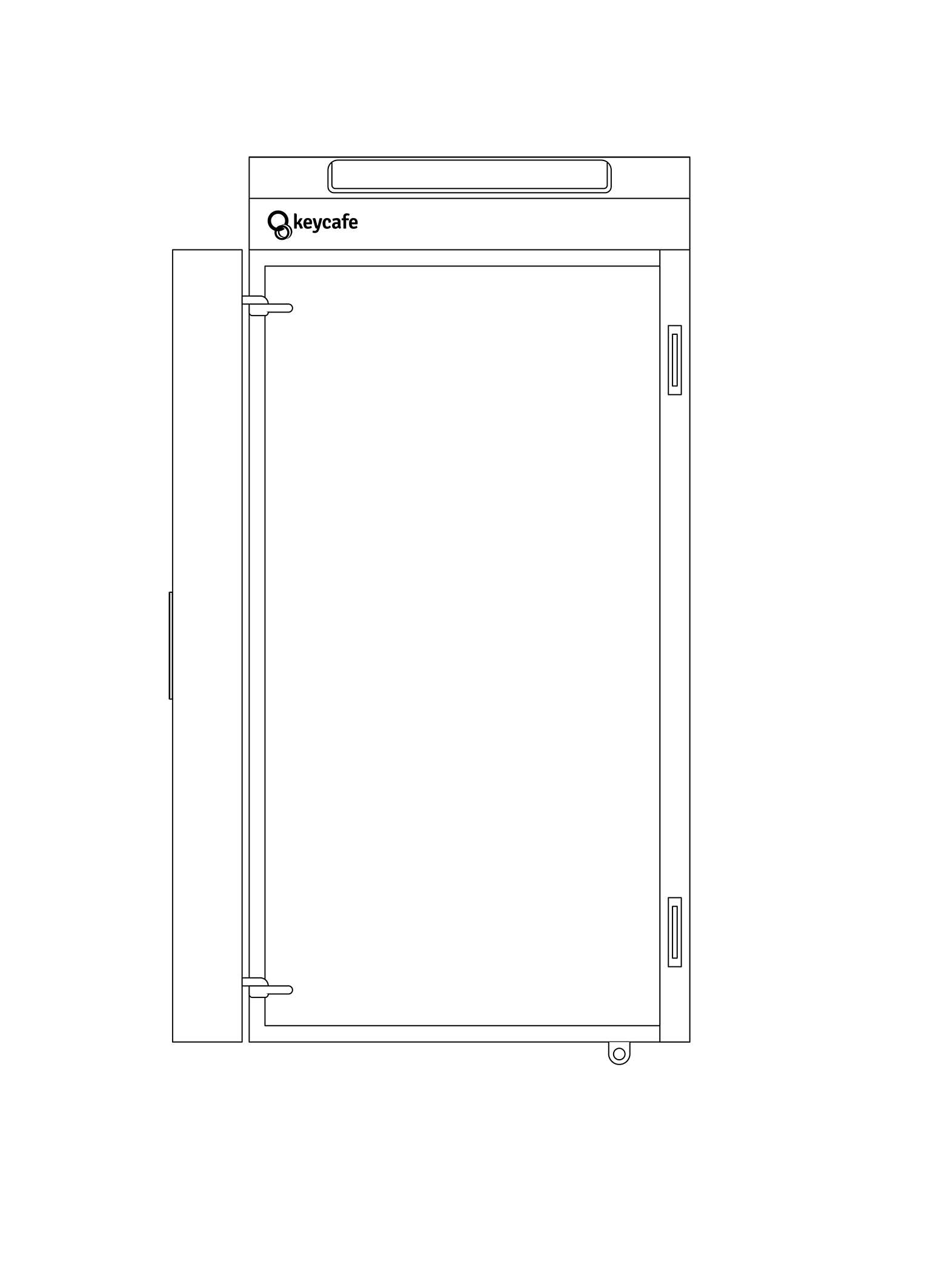

keycafe.smartbox.specs.enclosure.hardware
![keycafe.smartbox.specs.enclosure](/static/UJgwsV5zIpR6GEeKQeKnStA1OA94Uqbsqy8QztwrYxw.png)
![keycafe.smartbox.specs.enclosure](/static/gkckwScrF29AXCIi1ODhRWE0qrqoA3AHQ5SVFWcSNyb.png)
![keycafe.smartbox.specs.enclosure](/static/IpRuQCHg4WfRhZMxUoz7HmIHGAWR8b5WbtVMAvWkrPg.png)

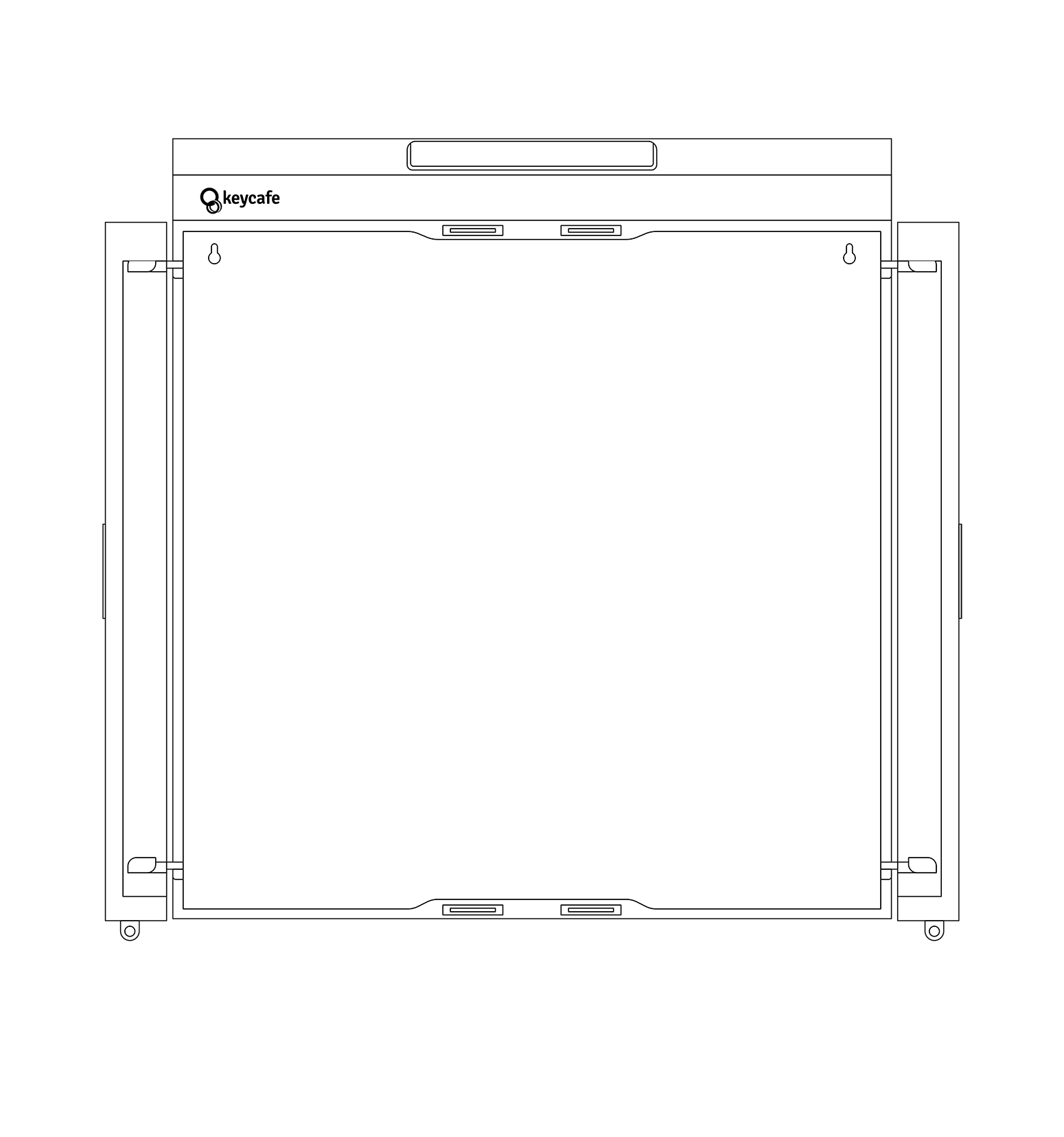

Specifications
- Dimensions
- 26.9" W x 29" H x 4" D (68.3cm W x 74.8cm H x 10cm D)
- Weight
- 37 lbs (16.8 kg)
- Ingress Protection
- IP56
- Mounting
- Wall mount
- Colour
- Gunmetal grey powder coating
- Warranty
- Two (2) year manufacturer warranty to repair or replace any manufacturer defects
- Support
- 24/7 email and chat support
keycafe.smartbox.specs.enclosure.hardware
![keycafe.smartbox.specs.enclosure](/static/xjAvrHRCv4CBVset1WaShBhy79IW8b4QOijFyEAl9Uu.png)
![keycafe.smartbox.specs.enclosure](/static/0roLmyxlVRpHzyJ11sy1em3Zpb4tlCZe79SD7zWiQnW.png)
![keycafe.smartbox.specs.enclosure](/static/qZEJcQtJcyRUbyDqjUgmsBM69HHVGpq75OzcEvRVFwL.png)

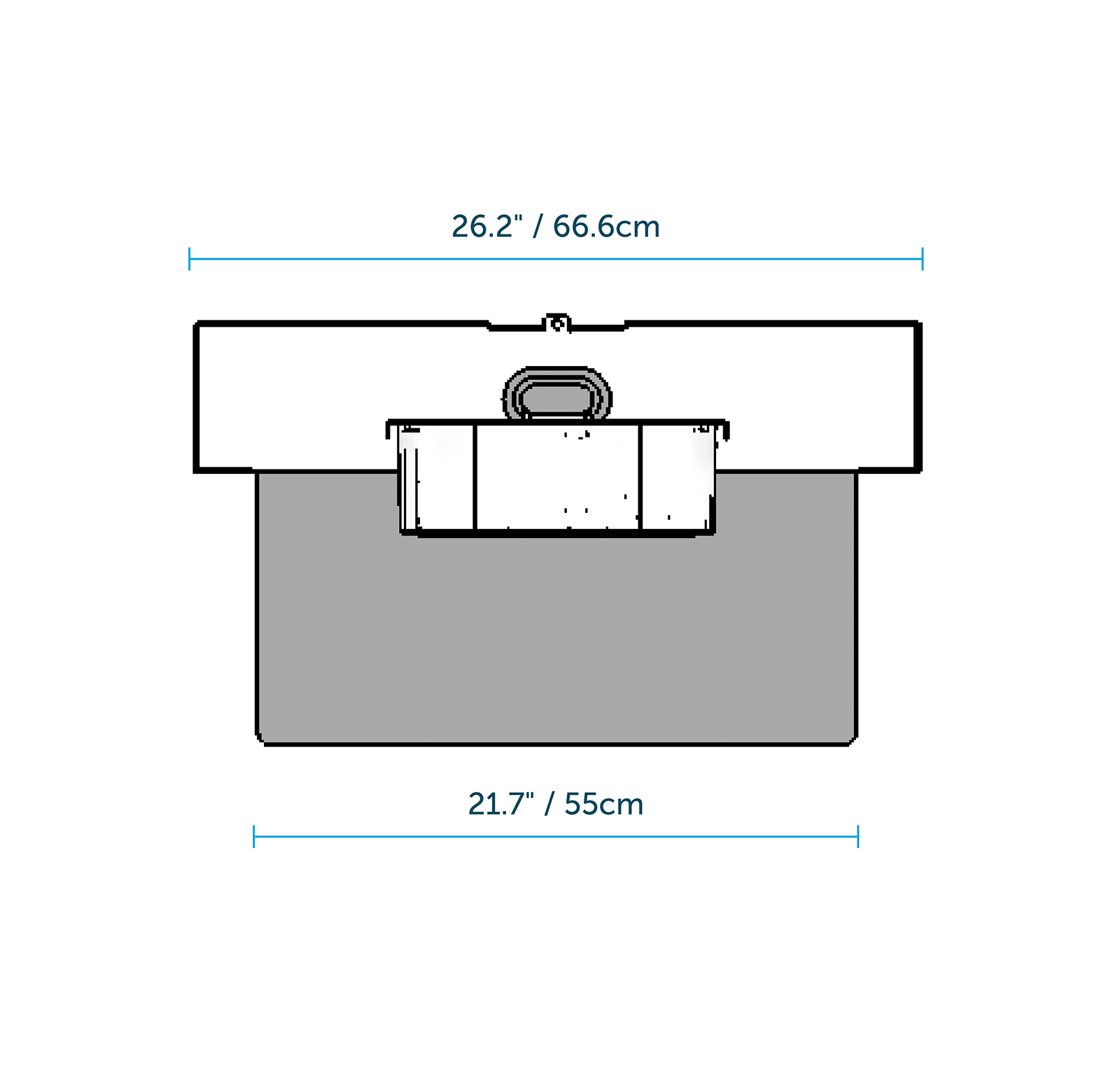

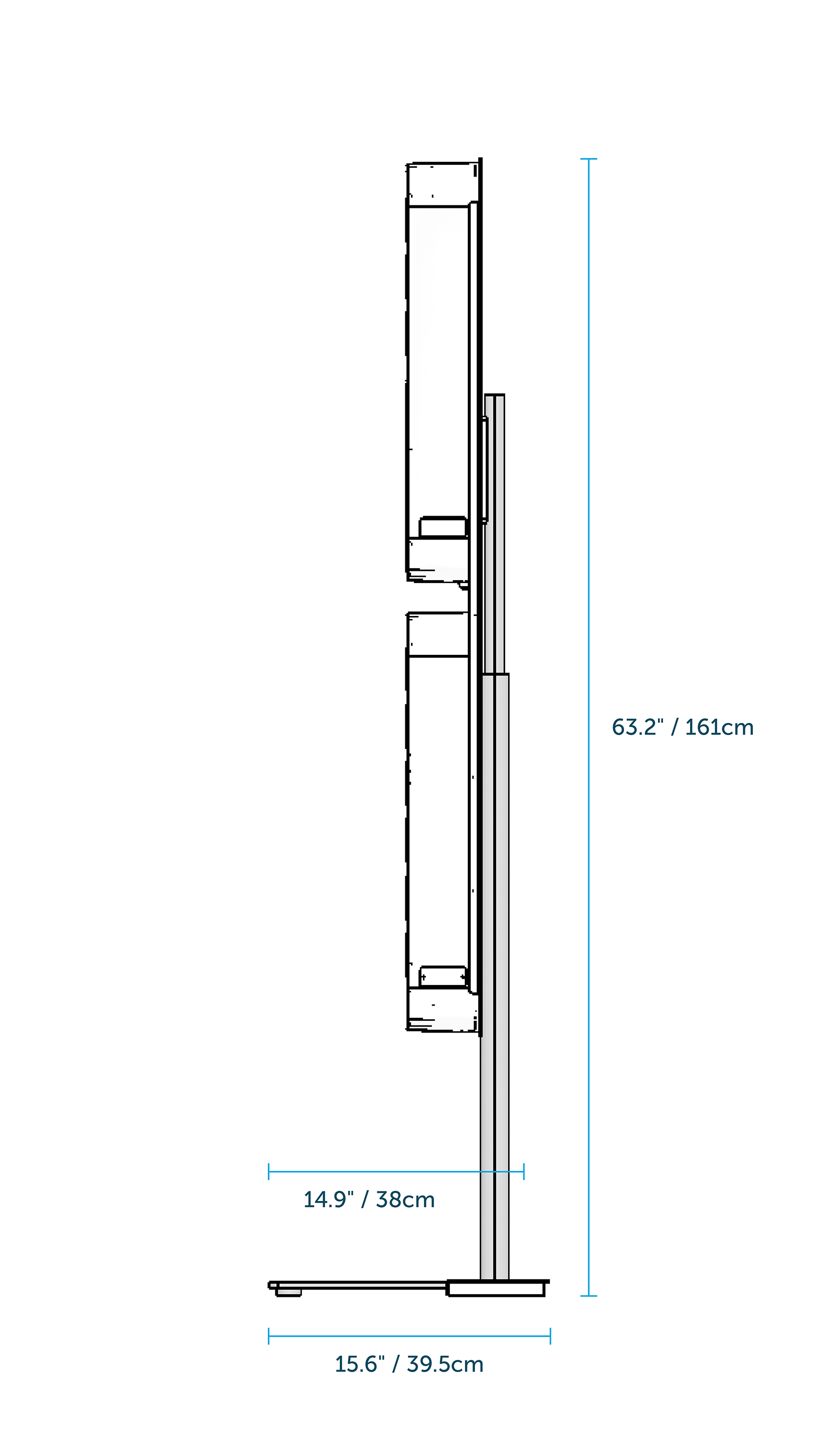

Specifications
- Dimensions
-
• 21.7" W x 63.2" H x 14.9" D (55cm W x 161cm H x 38cm D) without floor bracket
• 26.2" W x 63.2" H x 15.6" D (66.6cm W x 161cm H x 39.5cm D) with floor bracket - Weight
- 36.9 lbs (16.7 kg)
- Colour
- Black
- Warranty
- Two (2) year manufacturer warranty to repair or replace any manufacturer defects
- Support
- 24/7 email and chat support

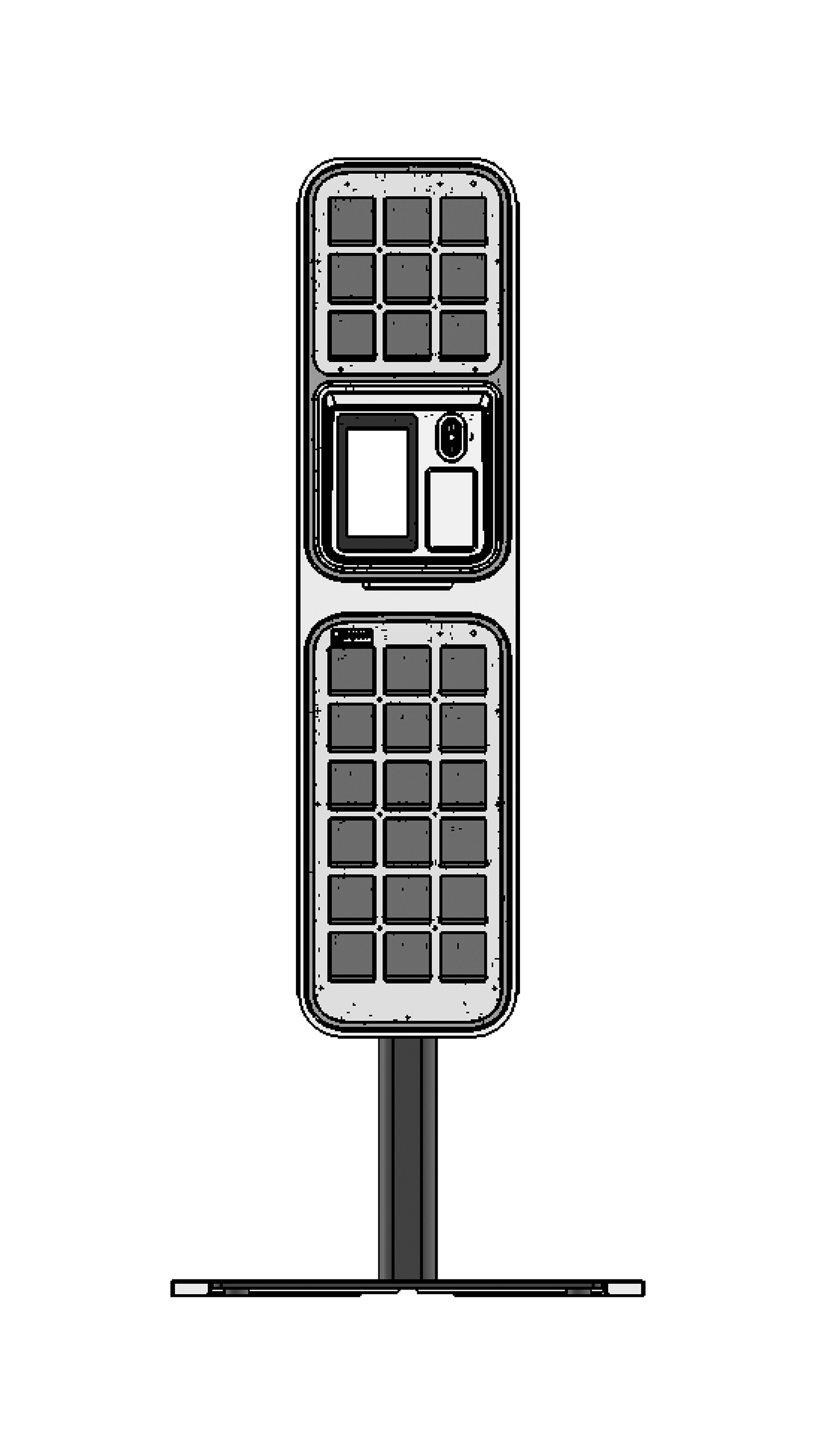

Hardware
![MS5 SmartBox Stand](/static/jthfvIrenQE08ZAJJHKZBbWqZVxBsUFxXm8T49dfLK5.png)
![MS5 SmartBox Stand](/static/O1H8q2Fsth8HVvUXAZXftbiw2dhbxMpZssZgSlUz2bw.png)
![MS5 SmartBox Stand](/static/NRuWatZhB83Cwq86DeKDXU5OJNxSjlCSxzXNvZF4BsB.png)
